OpenTitan UART. More...

#include <platform-uart.hh>

Inheritance diagram for OpenTitanUart:

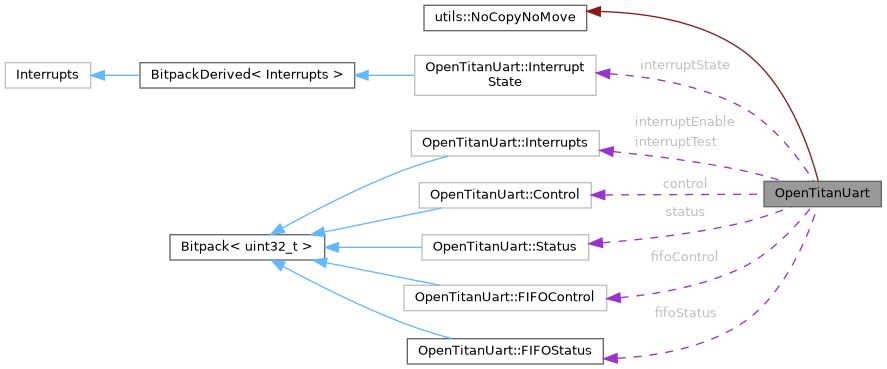

Collaboration diagram for OpenTitanUart:

[legend]

Classes
struct	Interrupts
struct	InterruptState
struct	Control
struct	Status
struct	FIFOControl
struct	FIFOStatus
	UART FIFO Status Register. More...

Public Member Functions
void	parity (bool enableParity=true, bool oddParity=false) volatile
	Configure parity.
void	loopback (bool systemLoopback=true, bool lineLoopback=false) volatile
	Configure loopback.
void	fifos_clear () volatile
	Clears the contents of the receive and transmit FIFOs.
void	transmit_watermark (FIFOControl::TransmitWatermark level) volatile
	Sets the level transmit watermark.
void	receive_watermark (FIFOControl::ReceiveWatermark level) volatile
	Sets the level receive watermark.
template<typename Interrupt>
void	interrupt_enable () volatile
	Enable the given interrupt by name.
template<typename Interrupt>
void	interrupt_disable () volatile
	Disable the given interrupt by name.
void	interrupt_enable (Interrupts interrupt) volatile
	Enable the given interrupt(s) by value.
void	interrupt_disable (Interrupts interrupt) volatile
	Disable the given interrupt(s) by value.
void	init (unsigned baudRate=DEFAULT_UART_BAUD_RATE) volatile
void	disable () volatile
	Turn off the transceivers.
void	reset () volatile
	Reset the control register to all zeros.
uint16_t	transmit_fifo_level () volatile
uint16_t	receive_fifo_level () volatile
bool	can_write () volatile
bool	can_read () volatile
void	blocking_write (uint8_t byte) volatile
	Write one byte, blocking until the byte is written.
uint8_t	blocking_read () volatile
	Read one byte, blocking until a byte is available.

Public Attributes
InterruptState	interruptState
Interrupts	interruptEnable
Interrupts	interruptTest
uint32_t	alertTest
	Alert Test Register (unused).
OpenTitanUart::Control	control
OpenTitanUart::Status	status
uint32_t	readData
	UART Read Data.
uint32_t	writeData
	UART Write Data.
OpenTitanUart::FIFOControl	fifoControl
OpenTitanUart::FIFOStatus	fifoStatus
uint32_t	override
	Transmit Pin Override Control.
uint32_t	values
	UART Oversampled Values.
uint32_t	timeoutControl
	UART Receive Timeout Control.

Detailed Description

OpenTitan UART.

This peripheral's source and documentation can be found at: https://github.com/lowRISC/opentitan/tree/ab878b5d3578939a04db72d4ed966a56a869b2ed/hw/ip/uart

Rendered register documentation is served at: https://opentitan.org/book/hw/ip/uart/doc/registers.html

Definition at line 24 of file platform-uart.hh.

Member Function Documentation

◆ blocking_read()

uint8_t OpenTitanUart::blocking_read ( ) volatile

inline

Read one byte, blocking until a byte is available.

Definition at line 318 of file platform-uart.hh.

References readData.

◆ blocking_write()

void OpenTitanUart::blocking_write ( uint8_t byte ) volatile

inline

Write one byte, blocking until the byte is written.

Definition at line 307 of file platform-uart.hh.

References writeData.

◆ can_read()

bool OpenTitanUart::can_read ( ) volatile

inline

Definition at line 298 of file platform-uart.hh.

◆ can_write()

bool OpenTitanUart::can_write ( ) volatile

inline

Definition at line 292 of file platform-uart.hh.

◆ disable()

void OpenTitanUart::disable ( ) volatile

inline

Turn off the transceivers.

Definition at line 264 of file platform-uart.hh.

References BITPACK_OPERATE_VALUE_DECLTYPE.

◆ fifos_clear()

void OpenTitanUart::fifos_clear ( ) volatile

inline

Clears the contents of the receive and transmit FIFOs.

Definition at line 188 of file platform-uart.hh.

References BITPACK_OPERATE_VALUE_DECLTYPE.

◆ init()

void OpenTitanUart::init ( unsigned baudRate = DEFAULT_UART_BAUD_RATE ) volatile

inline

Definition at line 249 of file platform-uart.hh.

◆ interrupt_disable() [1/2]

template<typename Interrupt>

void OpenTitanUart::interrupt_disable ( ) volatile

inline

Disable the given interrupt by name.

Definition at line 228 of file platform-uart.hh.

◆ interrupt_disable() [2/2]

void OpenTitanUart::interrupt_disable ( Interrupts interrupt ) volatile

inline

Disable the given interrupt(s) by value.

Definition at line 242 of file platform-uart.hh.

◆ interrupt_enable() [1/2]

template<typename Interrupt>

void OpenTitanUart::interrupt_enable ( ) volatile

inline

Enable the given interrupt by name.

Definition at line 221 of file platform-uart.hh.

◆ interrupt_enable() [2/2]

void OpenTitanUart::interrupt_enable ( Interrupts interrupt ) volatile

inline

Enable the given interrupt(s) by value.

Definition at line 234 of file platform-uart.hh.

References Bitpack< StorageParam >::raw().

◆ loopback()

void OpenTitanUart::loopback	(	bool	systemLoopback = true,
		bool	lineLoopback = false ) volatile

inline

Configure loopback.

When systemLoopback is set, outgoing transmitted bits are routed back the receiving line. When lineLoopback is set, incoming received bits are forwarded to the transmit line.

Definition at line 176 of file platform-uart.hh.

References BITPACK_OPERATE_VALUE_DEPENDENT.

◆ parity()

void OpenTitanUart::parity	(	bool	enableParity = true,
		bool	oddParity = false ) volatile

inline

Configure parity.

When enableParity is set, parity will be enabled. When oddParity is set, the odd parity will be used.

Definition at line 163 of file platform-uart.hh.

◆ receive_fifo_level()

uint16_t OpenTitanUart::receive_fifo_level ( ) volatile

inline

Definition at line 287 of file platform-uart.hh.

◆ receive_watermark()

void OpenTitanUart::receive_watermark ( FIFOControl::ReceiveWatermark level ) volatile

inline

Sets the level receive watermark.

When the number of bytes in the receive FIFO reach this level, the receive watermark interrupt will fire.

Definition at line 214 of file platform-uart.hh.

◆ reset()

void OpenTitanUart::reset ( ) volatile

inline

Reset the control register to all zeros.

That disables the transceivers, clears any loopbacks, disables parity, and so on.

Definition at line 277 of file platform-uart.hh.

◆ transmit_fifo_level()

uint16_t OpenTitanUart::transmit_fifo_level ( ) volatile

inline

Definition at line 282 of file platform-uart.hh.

◆ transmit_watermark()

void OpenTitanUart::transmit_watermark ( FIFOControl::TransmitWatermark level ) volatile

inline

Sets the level transmit watermark.

When the number of bytes in the transmit FIFO reach this level, the transmit watermark interrupt will fire.

Definition at line 203 of file platform-uart.hh.

Member Data Documentation

◆ alertTest

uint32_t OpenTitanUart::alertTest

Alert Test Register (unused).

Definition at line 61 of file platform-uart.hh.

◆ interruptEnable

Interrupts OpenTitanUart::interruptEnable

Definition at line 55 of file platform-uart.hh.

◆ interruptState

InterruptState OpenTitanUart::interruptState

Definition at line 54 of file platform-uart.hh.

◆ interruptTest

Interrupts OpenTitanUart::interruptTest

Definition at line 56 of file platform-uart.hh.

◆ override

uint32_t OpenTitanUart::override

Transmit Pin Override Control.

Gives direct software control over the transmit pin state.

Definition at line 147 of file platform-uart.hh.

◆ readData

uint32_t OpenTitanUart::readData

UART Read Data.

Definition at line 100 of file platform-uart.hh.

Referenced by blocking_read().

◆ timeoutControl

uint32_t OpenTitanUart::timeoutControl

UART Receive Timeout Control.

Definition at line 155 of file platform-uart.hh.

◆ values

uint32_t OpenTitanUart::values

UART Oversampled Values.

Definition at line 151 of file platform-uart.hh.

◆ writeData

uint32_t OpenTitanUart::writeData

UART Write Data.

Definition at line 104 of file platform-uart.hh.

Referenced by blocking_write().

The documentation for this struct was generated from the following file:

sdk/include/platform/sunburst/platform-uart.hh
